Español Modular HPC carbide drills from Nenok
The modular HPC interchangeable insert drilling system enables economical drilling of steel profiles and steel plates on modern, high-performance drilling rigs. The carbide HPC indexable inserts with a special tip geometry for centering and a wear-resistant multi-layer coating for high drilling speeds and long service life have been specially manufactured for use on drilling rigs from Ficep, Kaltenbach, MicroStep, Peddinghaus, Vernet-Behringer and Voortman. Use the Nenok-Tools insert cutting technology "Made in Germany" in the diameter range from 12 to 40 mm.
The advantages of the modular HPC drills from Nenok are obvious:
- The insert can be changed within the machine, so the holder remains clamped.
- This eliminates the need for tool changes or readjustments.
- This is associated with increased process reliability and shorter machine set-up times.
- The cooling channels with maximum cross-section ensure optimum cooling of the drill.
- No special tools are required due to the lateral mounting of the HPC exchangeable plates with clamping screws.
Buy modular HPC carbide drills from Nenok at a reasonable price
We naturally supply customers who purchase their machines from us with modular HPC carbide drills from Nenok at a preferential price.
But we can also offer you very attractive prices for purchase quantities of > 10 pcs. Make a non-binding, quick and easy request for the drill bits you require here on our website. We will get back to you immediately with an offer.
Request Nenok Multiplex drill HPC Type 3xD with cooling channel
| Ø Drill (D1) in mm | Ø Holder (D1) in mm | SKU | Quantity | REQUEST |
|---|---|---|---|---|
| 12 | 12 | NCT120H3 | ||
| 14 | 14 | NCT140H3 | ||
| 16 | 16 | NCT160H3 | ||
| 18 | 18 | NCT180H3 | ||
| 20 | 20 | NCT200H3 | ||
| 21 | 25 | NCT210H3 | ||
| 22 | 25 | NCT220H3 | ||
| 24 | 25 | NCT240H3 | ||
| 25 | 25 | NCT250H3 | ||
| 26 | 32 | NCT260H3 | ||
| 27 | 32 | NCT270H3 | ||
| 28 | 32 | NCT280H3 | ||
| 29 | 32 | NCT290H3 | ||
| 30 | 32 | NCT300H3 | ||
| 32 | 32 | NCT320H3 | ||
| 33 | 32 | NCT330H3 | ||
| 34 | 32 | NCT340H3 | ||
| 36 | 32 | NCT360H3 | ||
| 38 | 32 | NCT380H3 | ||
| 39 | 32 | NCT390H3 |
Request Nenok Multiplex drill HPC Type 5xD with cooling channel
| Ø Drill (D1) in mm | Ø Holder (D1) in mm | SKU | Quantity | REQUEST |
|---|---|---|---|---|
| 12 | 12 | NCT120H5 | ||
| 14 | 14 | NCT140H5 | ||
| 16 | 16 | NCT160H5 | ||
| 18 | 18 | NCT180H5 | ||
| 20 | 20 | NCT200H5 | ||
| 21 | 25 | NCT210H5 | ||
| 22 | 25 | NCT220H5 | ||
| 24 | 25 | NCT240H5 | ||
| 25 | 25 | NCT250H5 | ||
| 26 | 32 | NCT260H5 | ||
| 27 | 32 | NCT270H5 | ||
| 28 | 32 | NCT280H5 | ||
| 29 | 32 | NCT290H5 | ||
| 30 | 32 | NCT300H5 | ||
| 32 | 32 | NCT320H5 | ||
| 33 | 32 | NCT330H5 | ||
| 34 | 32 | NCT340H5 | ||
| 36 | 32 | NCT360H5 | ||
| 38 | 32 | NCT380H5 | ||
| 39 | 32 | NCT390H5 |
Request Nenok Multiplex drill HPC Type 7xD with cooling channel
| Ø Drill (D1) in mm | Ø Holder (D1) in mm | SKU | Quantity | REQUEST |
|---|---|---|---|---|
| 12 | 12 | NCT120H7 | ||
| 14 | 14 | NCT140H7 | ||
| 16 | 16 | NCT160H7 | ||
| 18 | 18 | NCT180H7 | ||
| 20 | 20 | NCT200H7 | ||
| 21 | 25 | NCT210H7 | ||
| 22 | 25 | NCT220H7 | ||
| 24 | 25 | NCT240H7 | ||
| 25 | 25 | NCT250H7 | ||
| 26 | 32 | NCT260H7 | ||
| 27 | 32 | NCT270H7 | ||
| 28 | 32 | NCT280H7 | ||
| 29 | 32 | NCT290H7 | ||
| 30 | 32 | NCT300H7 | ||
| 32 | 32 | NCT320H7 | ||
| 33 | 32 | NCT330H7 | ||
| 34 | 32 | NCT340H7 | ||
| 36 | 32 | NCT360H7 | ||
| 38 | 32 | NCT380H7 | ||
| 39 | 32 | NCT390H7 |

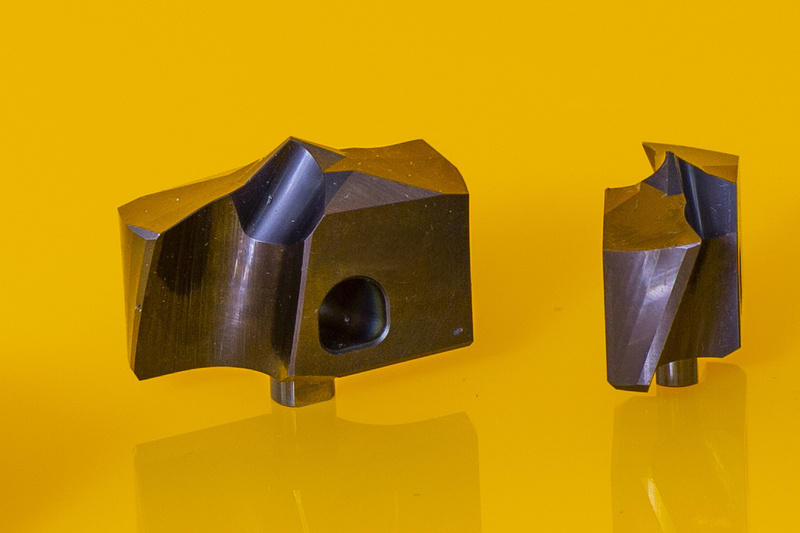

Request Nenok HPC inserts
Alternative to the modular HPC drills
Solid carbide drills from Nenok are an economical alternative, especially for smaller drilling diameters. The regrinding of solid carbide drills can easily be done by the customer. Of course, we also offer our customers a grinding service for both solid carbide drills and the cutting edges of modular HPC drills.
We also have the tried and tested KSEM modular drilling system from Kennametal in our product range.
