Description of Peddinghaus FDB 1000

Peddinghaus FDB 1000

Used Peddinghaus FDB 1000 plate drilling machine for economical drilling and flame cutting of flat steel and steel plates in steel construction, plant construction and steel trade.

The Peddinghaus FDB 1000 is a reliable system that is particularly suitable for the production of the head plates, foot plates and connecting plates.

This used FDB 1000 drilling machine is equipped with a CNC control Siemens Sinumerik 810 including the appropriate software for programming. Programming the machine via the CNC control is a simple task thanks to operator software.

Processing dimensions: processing width from 80 to 1000 mm, sheet thickness from 6 - 50 mm, material length as a basis up to 6000 mm (the processing length can be easily extended due to the roller measuring system), the infeed roller table with a length of 6000 mm and an outfeed roller table with a length of 1000 mm length are included.

FDB 1000 drilling unit

The FDB 1000 machine has a stable drilling unit with 3 drilling spindles controlled by a hydraulic drilling feed. The drilling capacity is designed for the use of HSS cooling channel drills in the diameter range from ø 8 mm to max. ø 40 mm. The coolant is supplied through the drilling spindles. Use Nenok HSS cooling channel drills with the steel construction flat point and the cooling lubricant Nencool for a high drilling performance.

FDB 1000 flame cutting unit

The flame cutting unit of the FDB 600 is designed for oxy-fuel cutting with a propane or acetylene gas-oxygen mixture. The gas type propane or acetylene can be changed on request at an additional cost. A fan in the burner box ensures that the burner gases are extracted. After the flame-cutting process, the finished drilled and burnt-out panels can be removed from the outfeed roller conveyor. A filter unit is available as an option at extra cost.

How the Peddinghaus FDB 1000 works:

After entering the drawing data or transferring the CAD data via DSTV or DXF interface to the Siemens CNC control, the flat material or metal sheets are processed in an automatic process. First, the sheet metal or the flat steel is positioned by the roller measuring feed at the point where marking or drilling takes place. After all the holes have been drilled, the contours are burned out in a second step.
The assembly and operator training of the FDB 1000 system as well as the later machine service and the supply of spare parts can be carried out by the service and spare parts department of Nenok GmbH on request.

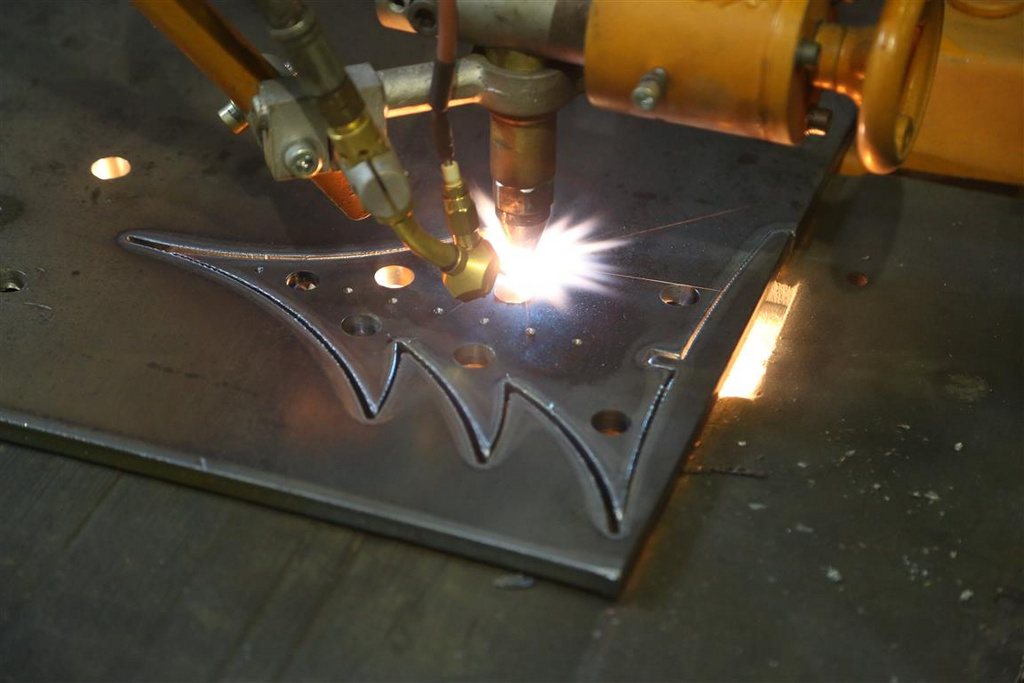

The photos show a test run of the FDB 1000 in the production of Christmas trees from 12 mm sheet steel. An automatic oxyfuel cut, drilling and center marking were carried out.

  • : 1000 x 6000 BxL mm
  • : 3 Stk.
  • : Siemens Sinumerik 810
  • : Einlauf 2 x 3 m
  • : 50 mm
  • : 5 mm
  • : 25 kW
  • : 6,5 t
  • : 2 x 2,3 x 2,8 m
  • : 8 mm
  • : 40 mm
Please note the changing performance characteristics in different model years due to innovations. We therefore assume no liability or guarantee for the topicality, correctness and completeness of the information and technical data provided on this website.
